SPECIFICATIONS

Aerial Photography: Yes

Aircraf Operating Frequency: other

Brand Name: NoEnName_Null

Camera Features: 1080p HD Video Recording

Camera Integration: Camera Included

Category: Camera drone

Connectivity: Remote Control,APP Controller

Drone Weight: 400g

Equipped with Aerosol Spraing System/Spread Tank Volume: No

Flight Time: 20min

GPS: Yes

Hign-concerned Chemical: None

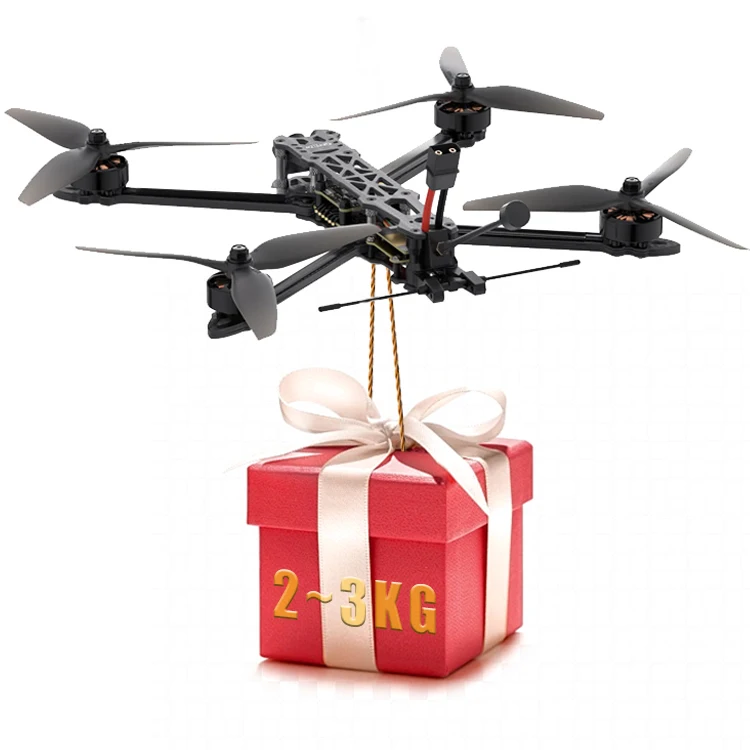

Max Takeoff Weight: 2-3KG

Max Wind Speed Resistance: 10-20km/h

Origin: Mainland China

Sensor Size: None

Video Maximum Resolution[Pixel X Pixel]: 240P（320*240）

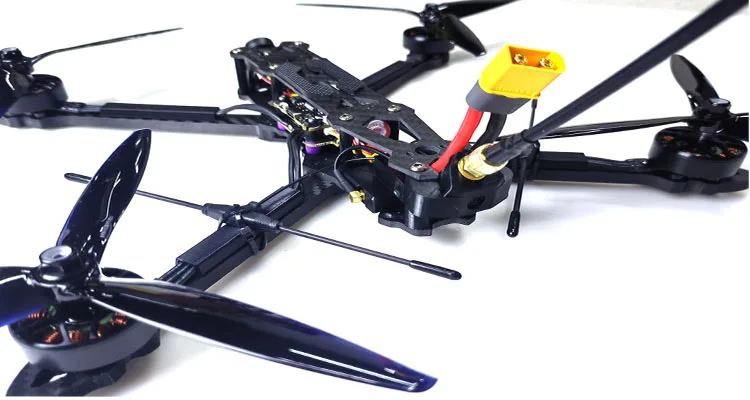

Products DescriptionDV10 Pro FPV Drone 10 Inch Specifications

1. Frame-DroView 10Inch Carbon Fiber Frame 2. Stack-F405 MK2 V2 F55 Blheli-S 55A -6S 3. DroView 5.8G Reaper Extrme 2.5W 40CH VTX /1.3G 1.6W VTX 4. DroView 1/3 CMOS 1500TVL Camera 5. DroView 3115 700KV MOTOR 6. German 1050Prop (2PAIRS) 7. Happymodel 915MHz RX ELRS 8.VTX Antenna 5.8G/1.3G RHCP 150MM 9. Battery Strap 20*300mm*2

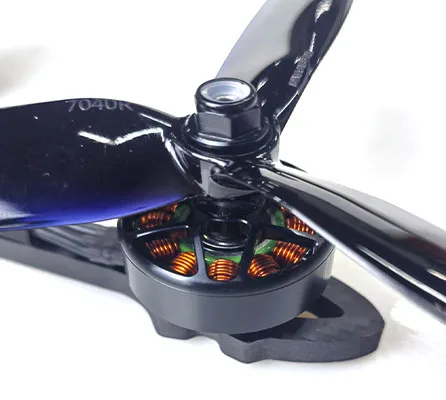

Demountable  Arm with Motors, which is for safety shipment and Small Packing Volume

The amrs with motor for DroView FPV Drones are demountable. It only need to install 8PCS Scews when install the FPV Drones. In that case, we can ship the fpv drones by parts for safety shipment. At the meanwhile, the packing volume is smaller when ship by parts. In that case, we have help our client save much shipping cost.

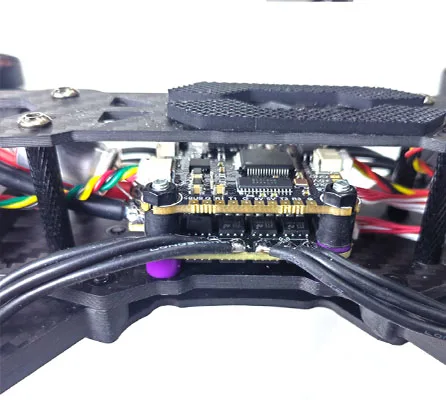

DV07 FC & ESC 4in1 STACK

Model: DroView F405 60A

Stack ESC : F60 Blheli-S 60A -6S 37*42.7mm FC: BL F405 (42688P)37*37mm

Mounting: 30.5*30.5mm

Input: 2-6S Consistent

Current: 60A

BEC: 5V 3A, 10V 2A

Temp Protection: YES

Power Cable: 12AWG, 10cm

Weight: 20.5g

current sensor:YES

motor output:8CH Universal serial port:4CH

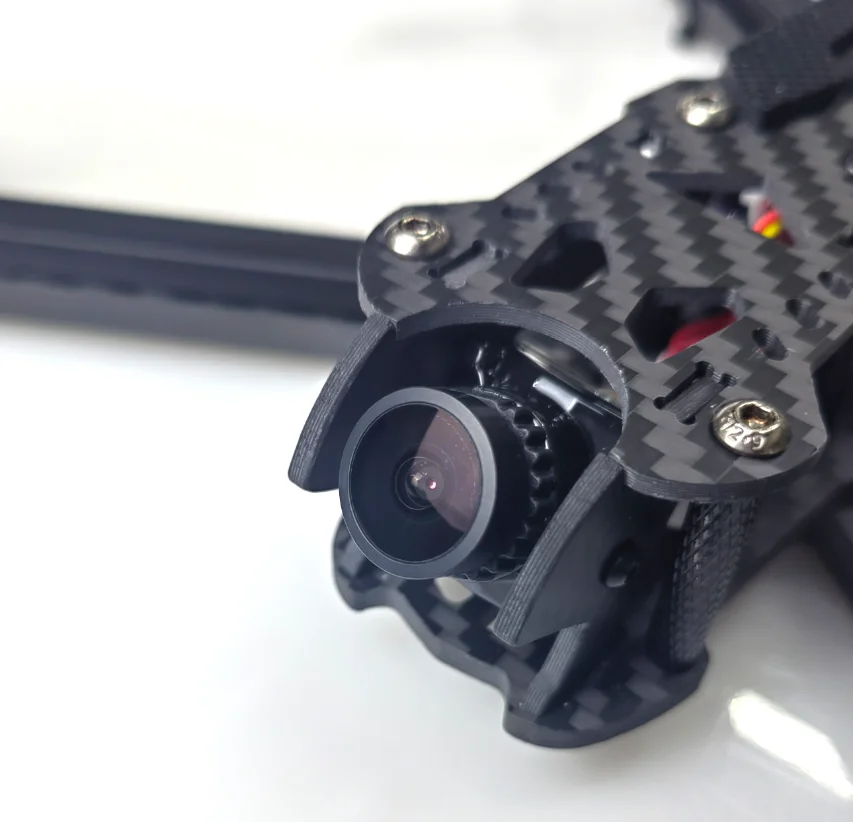

DV07 CAMERA

ITEM: DroView 1800TVL Camera

Sensor: 1/3.cmos

Resolution: 1800TVL

FOV: 165° Lens: 2.1mm

TV System: NTSC & PAL

Image: 4:3/16:9

WDR: Super WDR Min.

Illumination: 0.0001Lux Denoise:3DNR Video output:CVBS ElectronicShutter:PAL:1/50~100,000;

NTSC:1/60~100,000

Wide voltage:5-40V Operation temperature:-20℃~+60℃

Weight:5.9g Size:19*19*20mm

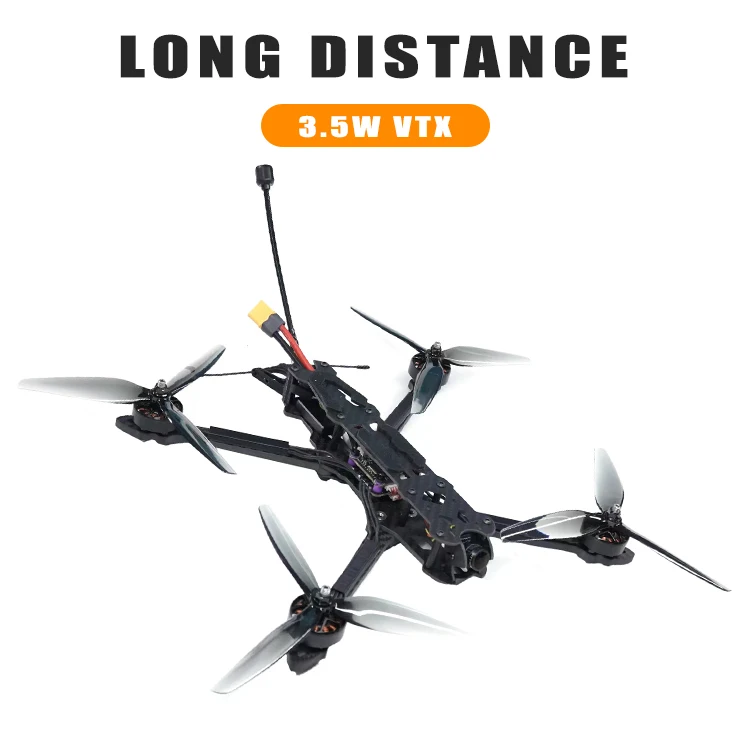

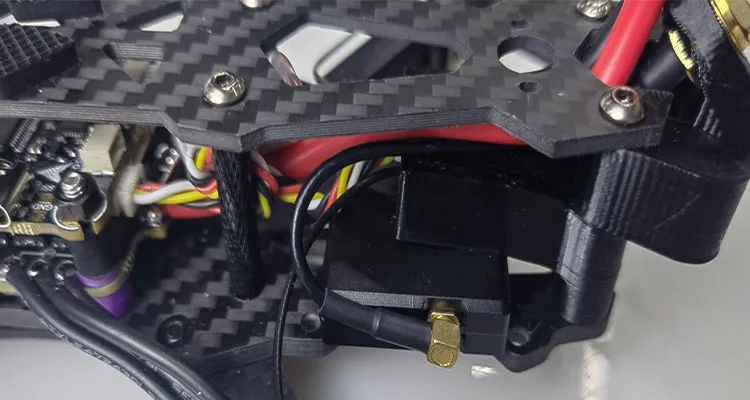

DV07 VIDEO TRANSMITTER

Item: Item: DroView 5.8G 2.5W VTX (1.3G 1.6W VTX Instead if 5.8G Chips short) Working Voltage:7-36V Working Current: ≤450mA (12V/800mW), ≤850mA (12V/2500mW) Video Input Impedance:75Ω Video Format: NTSC/PAL Antenna interface:MMCX 25mW/13.95dBm 500mW/26.02dBm 1000mW/30.3dBm 2500mW/34.04dBm Output Power:PIT/25/500/1000/2500mW Number of Channels: Standard 40 Channels (A/B/E/F/R) transmission protocol:SmartAudio Mounting Hole:20X20.M2 Dimension: 25*37*6.5mm Working Temp: -10-60℃ Weight: 19g
